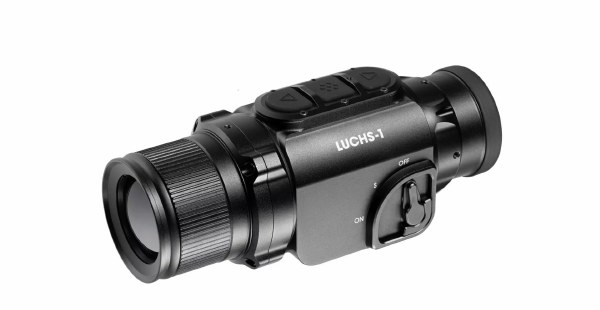

LIEMKE LUCHS-1

EYES LIKE A LYNX
It is fast, silent and its eyes are six times more sensitive to light than those of a human. This allows it to see its prey not only at dusk, but also to recognize it at long distances in complete darkness: The Lynx.

For the latest LIEMKE front attachment optics, we have taken advantage of exactly these characteristics. Experience the darkness through the eyes of the nocturnal hunter – with the LIEMKE LUCHS-1.

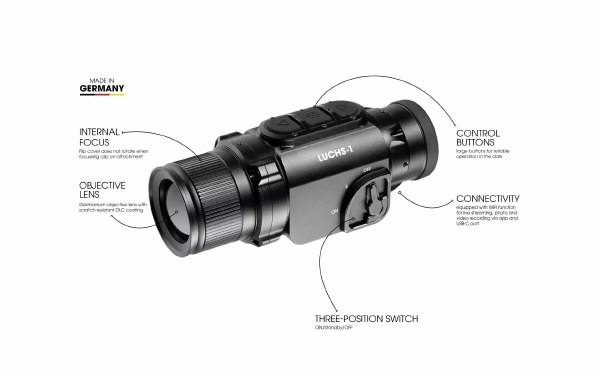

POWERFUL
640×512 12μm VOx Sensor for high contrast and detailed image
Large field of view of 22 m / 100 m
Range of 1.750 m
Steadfast due to built-in rechargeable battery with up to 9 hours duration
32 GB internal memory
Absolutely repeatable due to precisely tuned collimator
FAST AND QUIET
Ready for action at any time – startup time of only 5 seconds
Whisper quiet calibration procedure
TOUGH
Robust and shock-resistant aluminum housing – tested according to the requirements for premium riflescopes
Water and dust protected in accordance with IP67
ADAPTABLE
Suitable for forest or field hunting –
Suitable for use with universal and driven hunt riflescopes
Individual operating concept
INTUITIVE

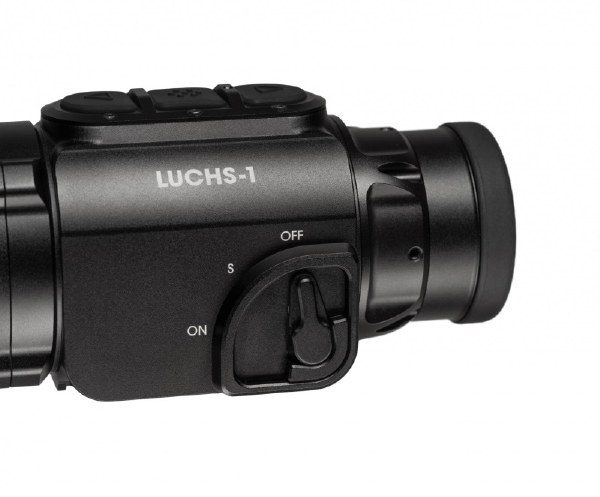

Visible and tactile switch, intuitive operation when aiming

TECHNICAL DATA

LUCHS-1
Sensor 640×512 12μm VOx
Objective lens 35 mm / f1.0
Field of view 22 x 17.6 m / 100 m
Detection range 1.750 m
Optical magnification 1x (2x direct zoom available)
Frequency 50 Hz
NETD 50mK
Display 1024×768 OLED color display
Battery integrated, up to 9 hours operation
External power supply USB-C
Wireless connection/memory WiFi / 32GB interneral memory
Connection thread M43 x 0.75
Waterproof IP67
Operational temperature -20°C to 50°C
Dimensions 161 x 64 x 65mm
Weight 580g
